150barG or 200barG Psa Medical Oxygen Plant with Cylinder Filling Station Backup
รายละเอียดสินค้า:
| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | KERONG GAS |
| ได้รับการรับรอง: | ISO13485，ISO9001 |
| หมายเลขรุ่น: | โคร |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น |
|---|---|
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | กล่องไม้ |
| เวลาการส่งมอบ: | 8 สัปดาห์ |
| เงื่อนไขการชำระเงิน: | L/C, T/T, เวสเทิร์นยูเนี่ยน, MoneyGram |
| สามารถในการผลิต: | 1,000pcs ต่อปี |
|
ข้อมูลรายละเอียด |
|||
| ชื่อ: | PSA โรงงานออกซิเจนทางการแพทย์ | ความบริสุทธิ์: | 90%~99.5% |
|---|---|---|---|
| ปริมาณน้ำมัน: | ปราศจากน้ำมัน | วัสดุ: | สแตนเลสหรือเหล็กกล้าคาร์บอน |
| ความจุ: | 5Nm3/ชม.~60Nm3/ชม | ความดัน: | ปรับได้ |
| เน้น: | PSA medical oxygen plant with cylinder filling,150barG medical oxygen generator,200barG oxygen plant with backup |
||
รายละเอียดสินค้า

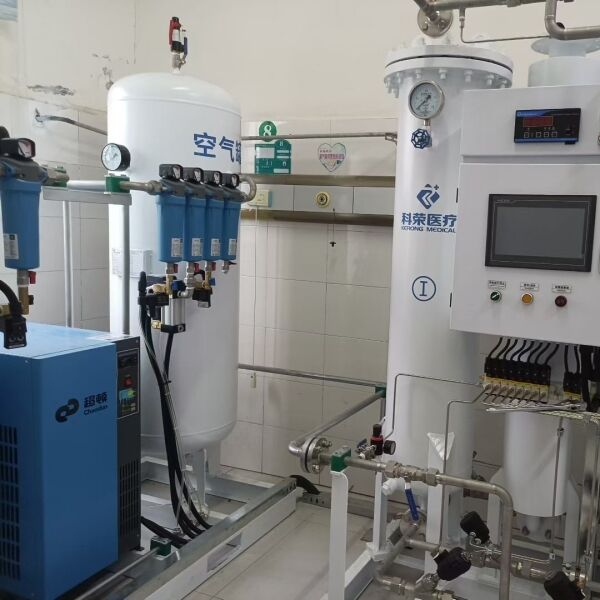

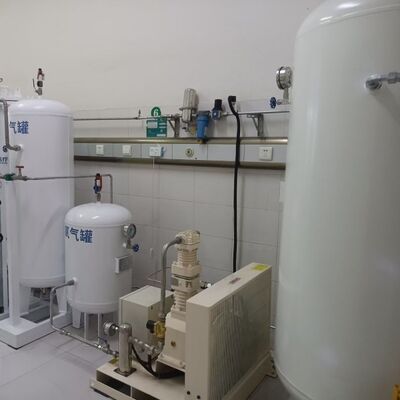

150barG or 200barG Psa Medical Oxygen Plant with Cylinder Filling Station Backup
Product description
Our 150barG or 200barG PSA Medical Oxygen Plant with Cylinder Filling Station Backup is designed to provide a continuous and dependable source of medical-grade oxygen for hospitals and healthcare facilities. Utilizing advanced Pressure Swing Adsorption (PSA) technology, the system generates oxygen with purity of 93% ±3% and delivers it directly to the medical pipeline network. The integrated 150barG or 200barG cylinder filling station allows oxygen cylinders to be filled as an emergency backup supply, ensuring uninterrupted availability during peak demand or power outages. Fully automatic, energy-efficient, and equipped with real-time oxygen monitoring, this plant offers a reliable, cost-effective, and self-sufficient medical oxygen solution.
Technical Parameters
● Purity——93%±3% or with the oxygen purifier can get maximum 99.5%
● Pressure——0.3~0.6 Mpa or with the booster to get 30Mpa or more
● Atmospheric dew point——≤－40℃ or more
| Item | Model | Oxygen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) |
| 1 | KRO-1-95 | 1 | 95%±1% | 0.25 |
| 2 | KRO-2-95 | 2 | 95%±1% | 0.50 |
| 3 | KRO-3-95 | 3 | 95%±1% | 0.75 |
| 4 | KRO-5-95 | 5 | 95%±1% | 1.25 |
| 5 | KRO-10-95 | 10 | 95%±1% | 2.50 |
| 6 | KRO-15-95 | 15 | 95%±1% | 3.75 |
| 7 | KRO-20-95 | 20 | 95%±1% | 5.00 |
| 8 | KRO-25-95 | 25 | 95%±1% | 6.25 |
| 9 | KRO-30-95 | 30 | 95%±1% | 7.50 |
| 10 | KRO-35-95 | 35 | 95%±1% | 8.75 |
| 11 | KRO-45-95 | 45 | 95%±1% | 11.25 |
| 12 | KRO-50-95 | 50 | 95%±1% | 12.50 |
| 13 | KRO-60-95 | 60 | 95%±1% | 15.00 |
Featured Function
Online monitoring of oxygen purity, pressure, flow rate and dew point.
Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
Air dryer and air filters automatic drainer discharge.
Automatic warning of spare parts replacement.
Remote control / fully automatic
Molecular sieve automatic compaction
Pneumatic valve switching by programmable controller automatic control
The IPC, DCS, the specific configuration of other specific programs
Factory Certificates
FAQ
Q: Are you a factory or a trading company?
A:We are a factory over 20 years industrial experience.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 60~90 days after receiving deposit.
Q: What certificates do you have?
A: We have ASME, CE, ISO9001-2015, ISO13485 for medical oxygen generator. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: Beyond warranty period(For 12-Months against any manufacturing defect from the date equipment acceptance after commissioning or 18-months from the time of the delivery whichever comes first),supplier will provide spare parts, accessories, easily damaged parts via preferential price.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:Which port is near to you?
A: Qingdao port or Tianjin port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
