Automatic PLC Controlled Ammonia Dissociation Unit With Heat Insulation
รายละเอียดสินค้า:
| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | KERONG GAS |
| ได้รับการรับรอง: | ISO9001 |
| หมายเลขรุ่น: | เอเอ็นเอช,เอ็นเอชพี |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น |
|---|---|
| ราคา: | negotiable |
| รายละเอียดการบรรจุ: | กล่องไม้ |
| เวลาการส่งมอบ: | 8 สัปดาห์ |
| เงื่อนไขการชำระเงิน: | L/C, T/T, เวสเทิร์นยูเนี่ยน, MoneyGram |
| สามารถในการผลิต: | 1,000pcs ต่อปี |
|
ข้อมูลรายละเอียด |
|||
| ชื่อ: | หน่วยแยกแอมโมเนีย | ตัวเร่งปฏิกิริยา: | ตัวเร่งปฏิกิริยานิกเกิล |
|---|---|---|---|
| จุดน้ำค้าง: | -70 ℃ | วัสดุ: | สแตนเลสหรือเหล็กกล้าคาร์บอน |
| ความจุ: | 5Nm3/ชม.~250Nm3/ชม | ความดัน: | 0.5bar หรือมากกว่า |
| เน้น: | PLC controlled ammonia cracker unit,automatic ammonia dissociation unit,heat insulated ammonia cracker |
||
รายละเอียดสินค้า

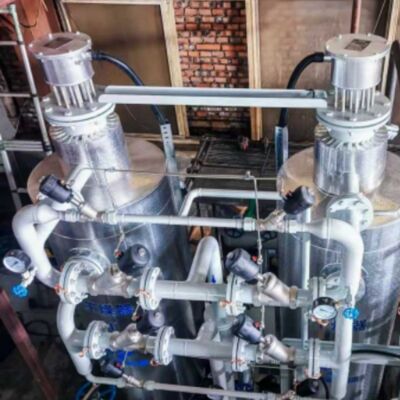

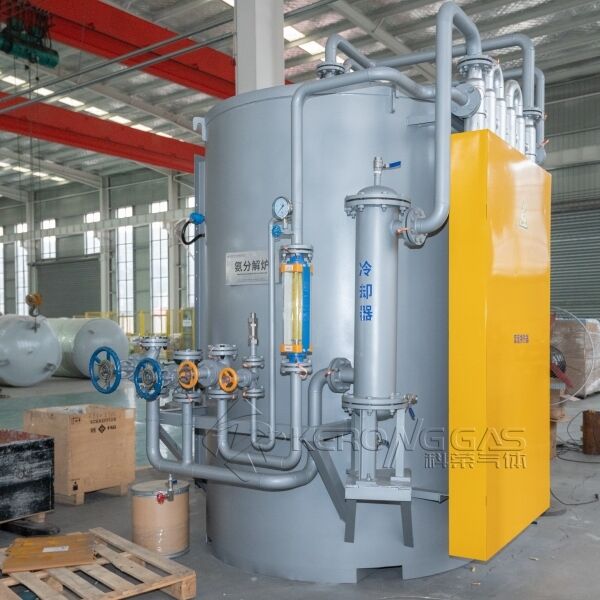

Automatic PLC Controlled Ammonia Dissociation Unit With Heat Insulation
Product description
Our Automatic PLC Controlled Ammonia Dissociation Unit with Heat Insulation is designed to produce high-purity dissociated ammonia gas, consisting primarily of hydrogen and nitrogen, for heat treatment, brazing, annealing, and metallurgical applications. Equipped with an advanced PLC control system, it enables fully automatic operation, precise temperature regulation, and real-time system monitoring for reliable performance. The heat-insulated reactor design minimizes thermal losses, improves energy efficiency, and ensures stable gas production. Constructed with durable, high-temperature-resistant materials, the unit offers long service life and low maintenance requirements. Compact and easy to install, it provides a cost-effective and dependable protective atmosphere solution for industrial processing applications.
Technical Parameters
Capacity: 5-250Nm³/h
Dew point :-70 ℃
Oxygen content: less than 3ppm
Ammonia content: less than 3ppm
| Model | Capacity | Power consumption | Liquid ammonia consumption | Cooling water consumption | Dimensions |
| (Nm3/h) | (KW) | kg/hr | m3/hr | mm | |
| ANH-NHP-5 | 5 | 6.5 | 1.89 | N/A | 1400*1180*1600 |
| ANH-NHP-10 | 10 | 13 | 3.79 | N/A | 1440*1340*1600 |
| ANH-NHP-20 | 20 | 24 | 7.58 | 0.2 | 2200*1435*1800 |
| ANH-NHP-30 | 30 | 34 | 11.36 | 0.2 | |
| ANH-40 | 40 | 36 | 15.15 | 0.25 | 1870*2065*2570 |
| NHP-40 | 40 | 3 | N/A | 1530*880*2010 | |
| ANH-50 | 50 | 44 | 18.94 | 0.25 | 1870*2065*2570 |
| NHP-50 | 50 | 3 | N/A | 1530*860*2010 | |
| ANH-60 | 60 | 52 | 22.73 | 0.25 | 1870*2065*2570 |
| NHP-60 | 60 | 3 | N/A | 1530*860*2010 | |
| ANH-70 | 70 | 58 | 26.52 | 0.42 | 1870*2065*2570 |
| NHP-70 | 70 | 6 | N/A | 1480*900*2050 | |
| ANH-80 | 80 | 64 | 30.30 | 0.42 | 1870*2065*2570 |
| NHP-80 | 80 | 6 | N/A | 1480*900*2050 | |
| ANH-90 | 90 | 88 | 34.09 | 0.65 | 1990*2295*2580 |
| NHP-90 | 90 | 6 | N/A | 1800*1000*2050 | |
| ANH-100 | 100 | 83 | 37.88 | 0.65 | 1990*2295*2580 |
| NHP-100 | 100 | 6 | N/A | 1800*1000*2050 | |
| ANH-110 | 110 | 104 | 41.67 | 0.65 | 1990*2295*2580 |
| NHP-110 | 110 | 6 | N/A | 1800*1000*2250 | |
| ANH-120 | 120 | 104 | 45.45 | 0.65 | 1990*2295*2580 |
| NHP-120 | 120 | 6 | N/A | 1800*1000*2250 | |
| ANH-140 | 140 | 117 | 53.03 | 0.85 | 1990*2295*3078 |
| NHP-140 | 140 | 9 | N/A | 1800*1000*2450 | |
| ANH-150 | 150 | 138 | 56.82 | 0.85 | 1990*2295*3078 |
| NHP-150 | 150 | 9 | N/A | 1800*1000*2650 | |
| ANH-160 | 160 | 138 | 60.61 | 0.85 | 1990*2295*3078 |
| NHP-160 | 160 | 9 | N/A | 1800*1000*2650 | |
| ANH-180 | 180 | 155 | 68.18 | 1.15 | 2290*2620*3100 |
| NHP-180 | 180 | 13.5 | N/A | 2150*1000*2785 | |
| ANH-200 | 200 | 155 | 75.76 | 1.15 | 2290*2620*3100 |
| NHP-200 | 200 | 13.5 | N/A | 2150*1000*2595 | |
| ANH-250 | 250 | 196 | 94.70 | 1.3 | 2520*2775*3150 |
| NHP-250 | 250 | 13.5 | N/A | 2150*1000*2600 |
